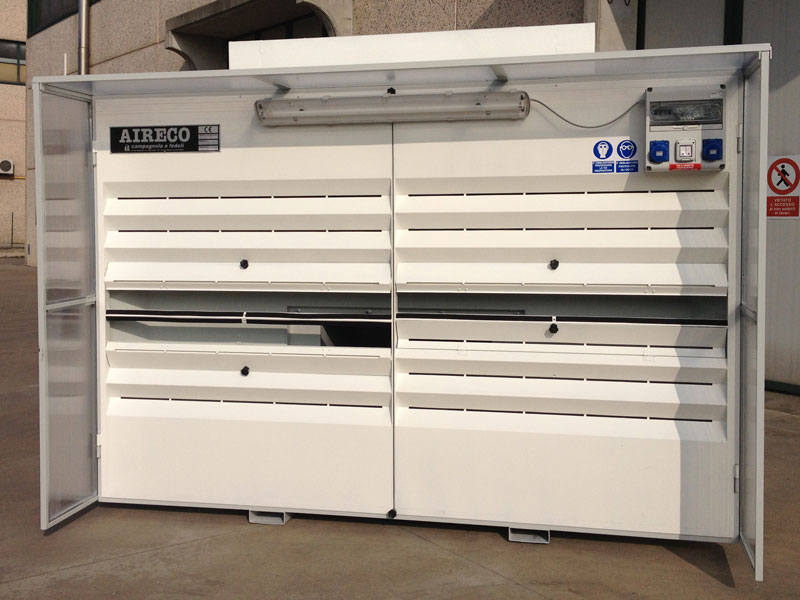

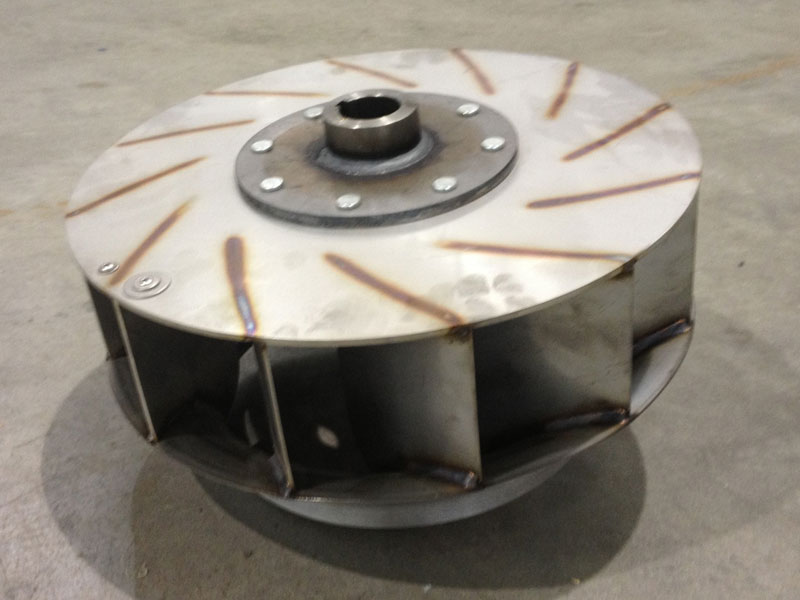

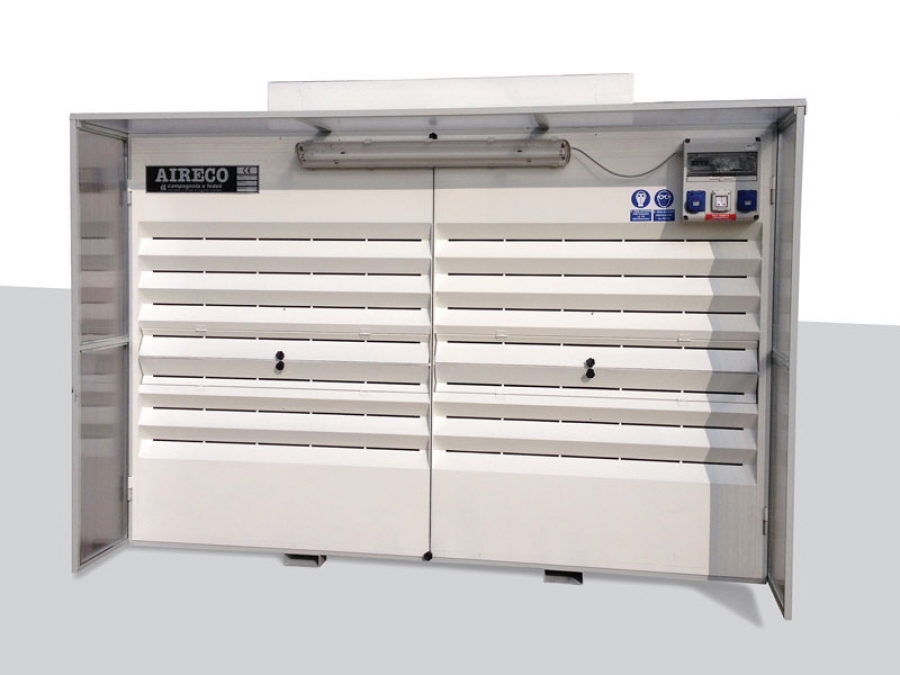

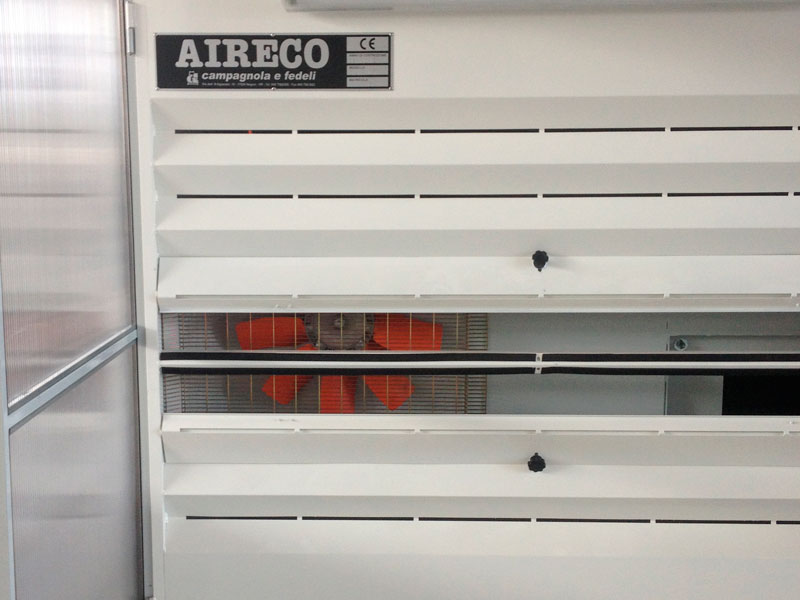

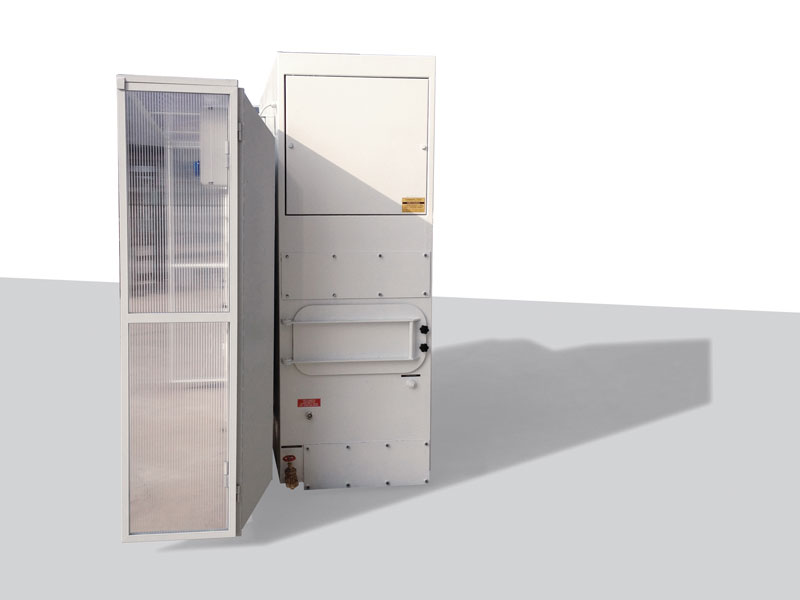

AIRECO WALL EXTRACTION: air purification system for use on walls with plexiglass conveyor panels. Created after thorough technical and scientific research, it boasts the best performance in the sector. It is the only machine currently on the market with a high-pressure turbine built entirely in stainless steel. The effectiveness of the extraction system and its dust-capturing capacity are certified by a sworn appraisal issued by an authorized chemical laboratory. The system is designed to be assembled inside or outside an industrial building. In the front part of the machine the extraction process is dry; in the rear part, inside the column, the dust from machining is captured and purified by a water turbine.
Images related to this product
STANDARD AVAILABLE MODELS
- 213/F 2000x(h)2000 mm
- 213/F 3000x(h)2000 mm
- 213/F 3500x(h)2000 mm
- 213/F 4000x(h)2000 mm
- 213/F 5000x(h)2000 mm
MODELS WITH DOUBLE PURIFIER
- 213/F 5000x(h)2000 mm double
- 213/F 6000x(h)2000 mm double
Models be made to measure on request
TECHNICAL DATA
- dust capturability 99,9% certified

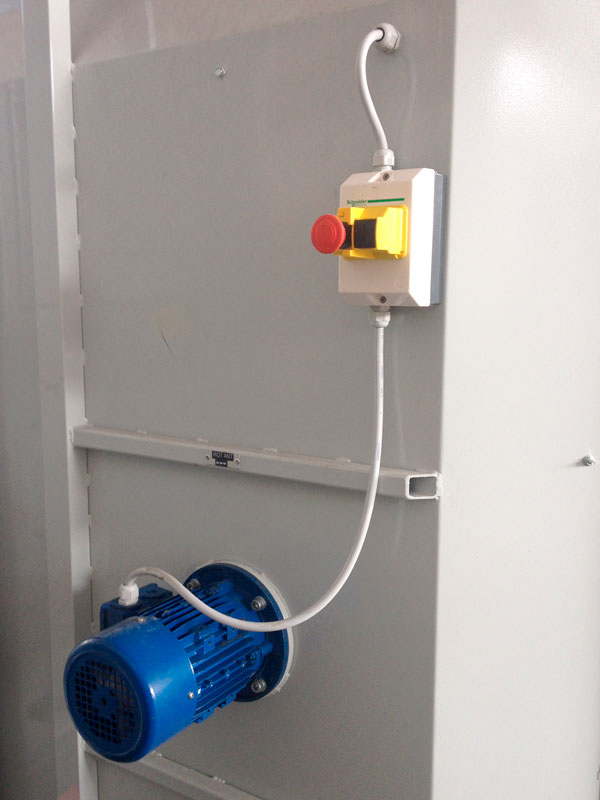

- installed power motor 5.5 kW (11 kW per 213/F double)
- air extraction 14200 m3/h (28400 m3/h per 213/F double)
- water purification
- noise 80 dB

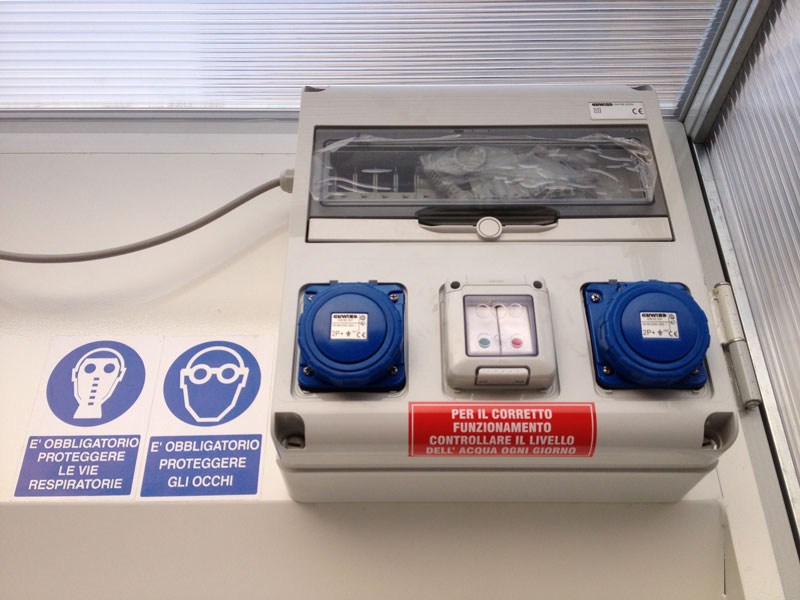

- electrical panel with plugs 220 V - Start & Stop
- courtesy light
- hot-dip galvanized tower
- side walls with transparent plexyglas
OPTIONALS

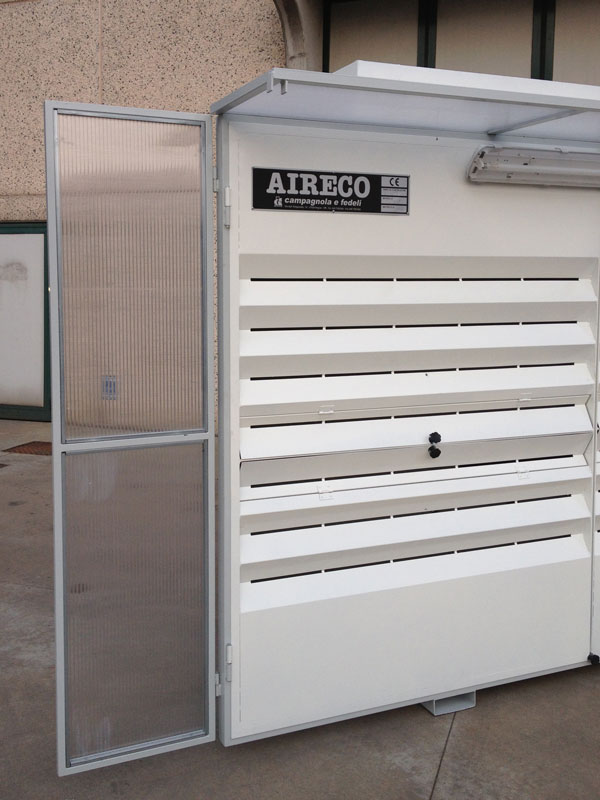

- external cover wall purifier (roof)

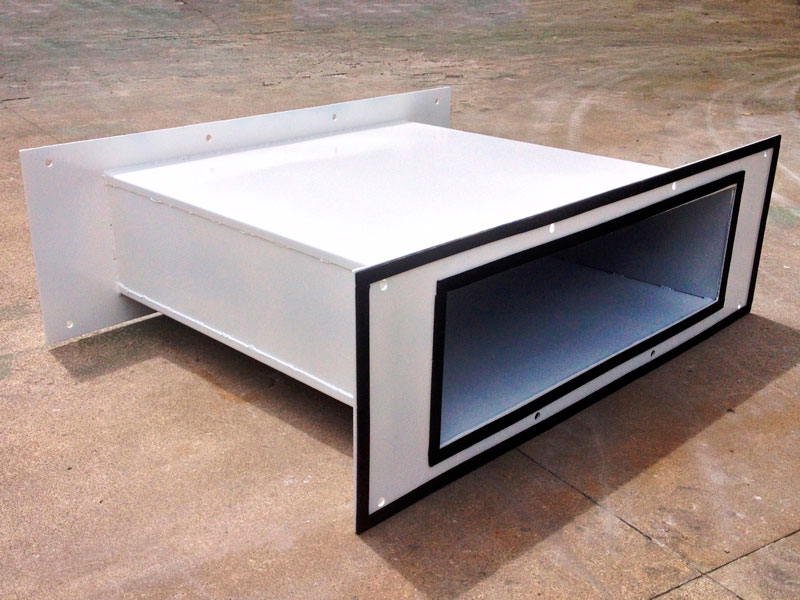

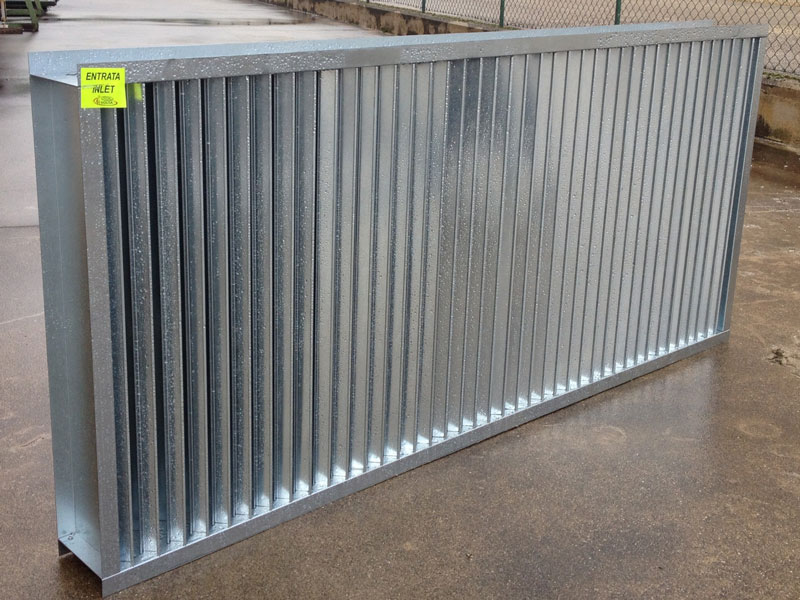

- extension for moving extraction purifier outside 900mm

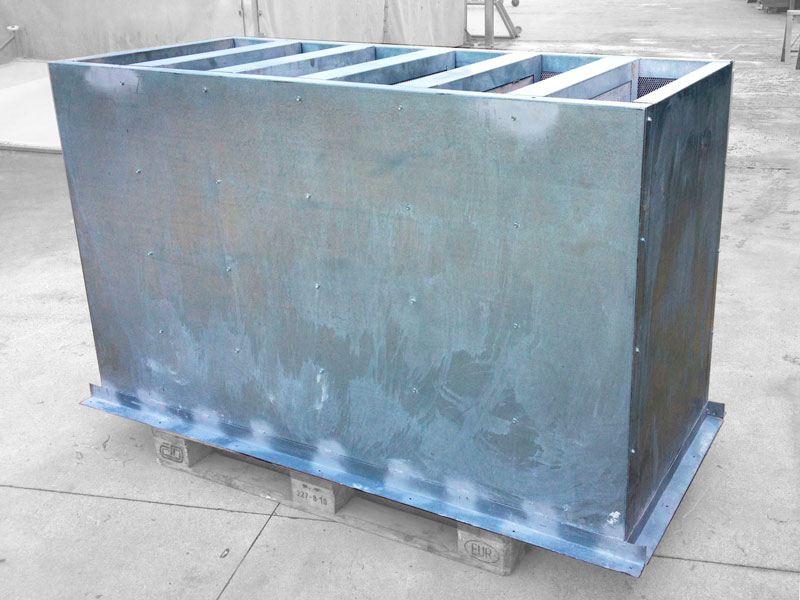

- silencer for wall purifier (not approved)

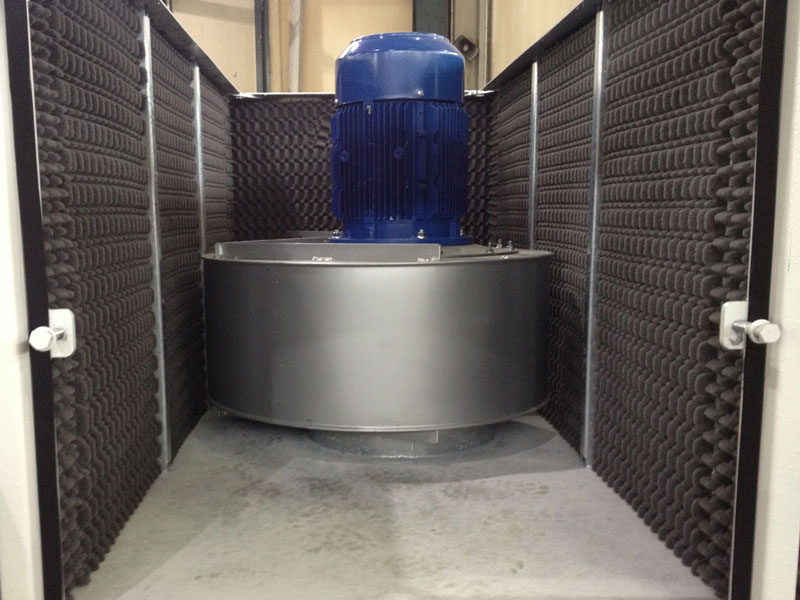

- silencer for wall purifier (approved)
- kit of 2 supplementary fans for walls with single operating switch (recommended with model 213/F 4000 and 213/F 5000 STANDARD)

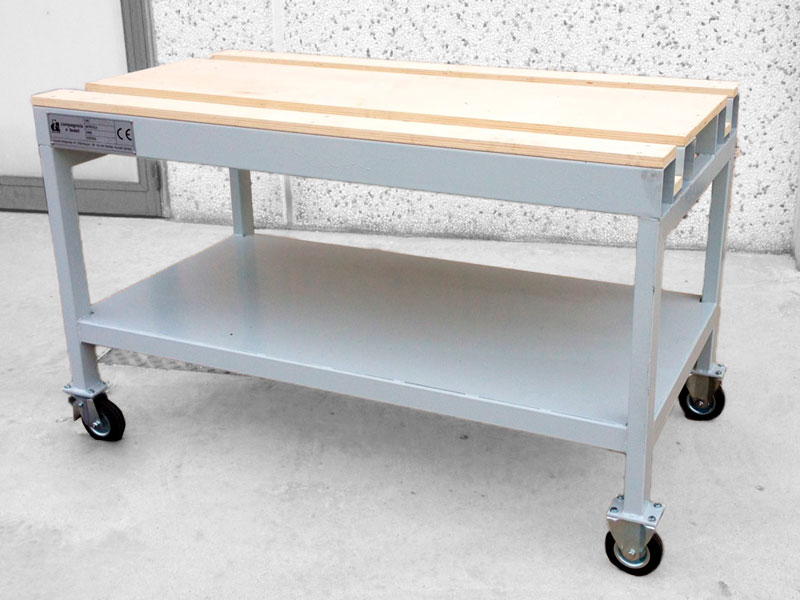

- Replacement holder bench
