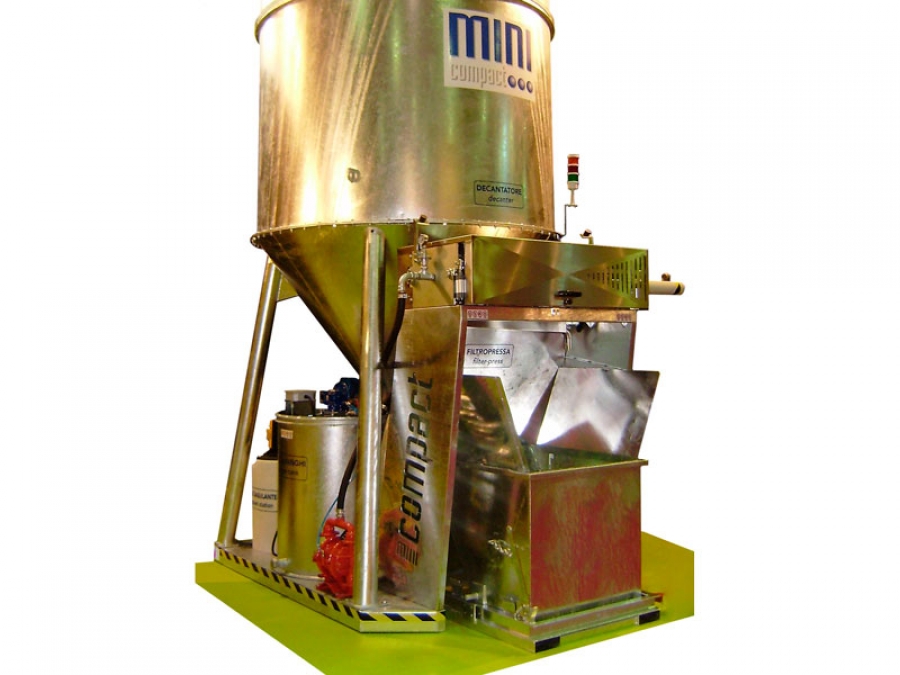

Mini Compact L: is especially suitable for the small and medium companies. It has small overall dimensions and for this reason can be placed both outside and inside.It is mainly composed by a base platform and during the assembling in our company all the necessary components for a good working are installed.
It is projected and produced to allow a very good reliability for long time and a working following the environmental rules.
It is equipped with decanter to clarify the water and filterpress for sludge dehydration, automatic sludge discharge, mixer for the sludge, oil station to close and open the filterpress, control board to manage and control equipped with plc (touch screen) and remote control, flocculant station, filterpress feeding pump. The plant is completely hot galvanized for a long life in very hard working conditions.

Images related to this product

TECHNICAL DATA

• 8 filter plates 300x300 mm
• capacity 600 l/min
• energy need 6,5 KW
• dimensions 2100x2930x(h)5775 mm
• weight 2500 Kg

OPTIONALS

• air compressed station
• dehydrated sludge collecting tank
• underwater pump safety cage
• clarified water pump for mini compact L
• clarified water tank (about 3000 lt capacity)
• dosing station for engineered stone
