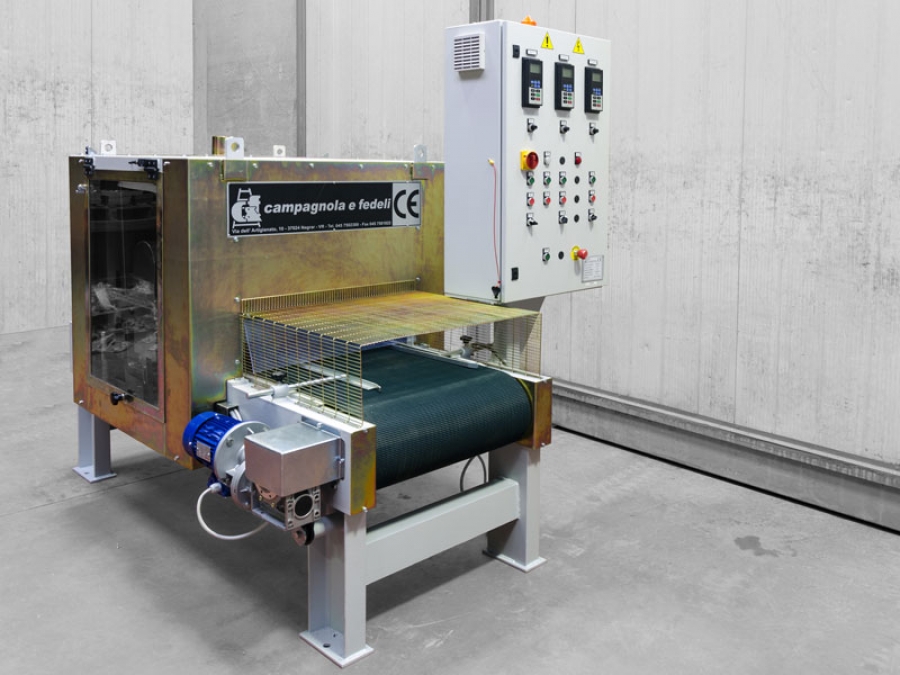

Automatic scratching machine 600 mm mod. A – from above

AUTOMATIC SCRATCHING MACHINE MOD. A: Automatic scratching machine with 600 mm roller with movement FROM ABOVE; interchangeable widia cusps roller pitch 2,5mm (on request 3 – 4 mm). Suitable for straight, wavy and special scratching work such as satin finish and bamboo effect, with machine axis interpolation, only usable if the material is calibrated. The machine is set up for use with a dust extraction system. The tools are made of the highest quality pure widia and can be reground, thereby lengthening their lifespan.



Some example of machining work



Images related to this product



TECHNICAL DATA

  • minimum machinable dimensions 250mm x 250mm
  • maximum machinable dimensions 600mm x (end-to-end)
  • minimum machinable height 12 mm
  • maximum machinable height 50 mm
  • maximum machinable height 80 mm (removing pressure rollers)
  • power of roller motor 7.5 KW
  • each motor is controlled by its inverter for work with axis interpolation
  • table with rubber belt drive
  • overall dimensions of machine 2020x1800xH1700mm
  • machine weight 975 kg

OPTIONAL

  • idle roller for entry/exit of material lenght 1 m
  • electroplated diamond roller for satin finish lenght 1 m
  • roller for bamboo effect
  • replacement roller from 600 mm complete of supports and pulleys (with widia points pitch 2,5 mm)
  • replacement widia point (n. 248 points for roller pitch 2,5 mm)
