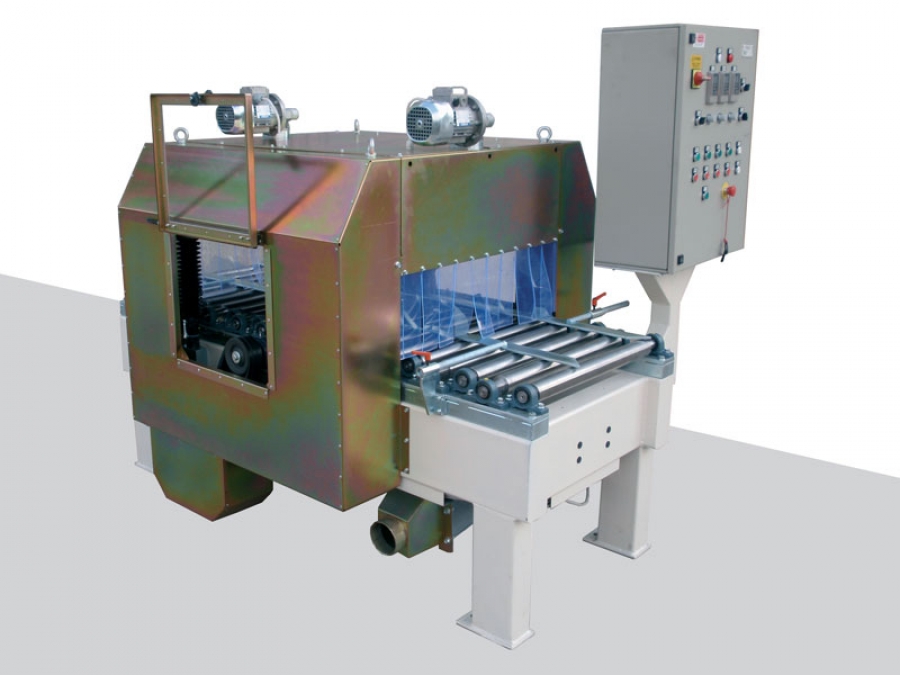

Automatic scratching machine 600mm mod. B – from below

AUTOMATIC SCRATCHING MACHINE MOD. B: Automatic scratching machine with 600 mm roller with movement FROM BELOW;interchangeable widia cusps roller pitch 3 mm (on request 2.5 – 4 mm). Suitable for straight, wavy and special scratching work such as satin finish and bamboo effect, also for uncalibrated materials (+ or – 2 mm between one item and another), with axis interpolation. The machine is supplied with a 3 kW dust extraction system. The tools are made of the highest quality pure widia and can be reground, thereby lengthening their lifespan.


Some example of machining work


Images related to this product



  • minimum machinable dimensions 300mm x 300mm
  • maximum machinable dimensions 600mm x (end-to-end)
  • minimum machinable height 15/20 mm
  • maximum machinable height 100 mm
  • power of roller motor 7.5 KW

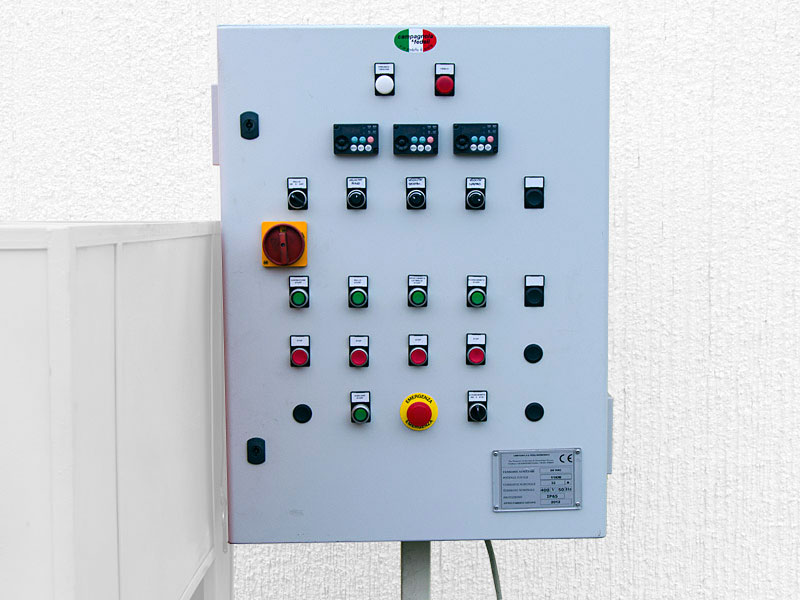

  • each motor is controlled by its inverter for work with axis interpolation

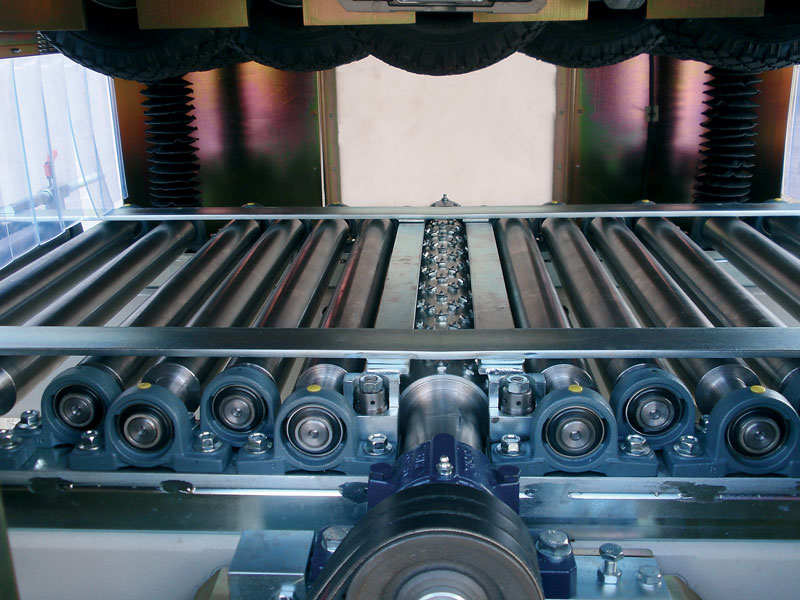

  • table with idle rollers with drive with upper rubber wheels
  • raised tower with shock absorber to support the difference in thickness of the materials to be machined
  • overall dimensions of machine 2000x1800xH1800mm
  • machine weight 1535 kg

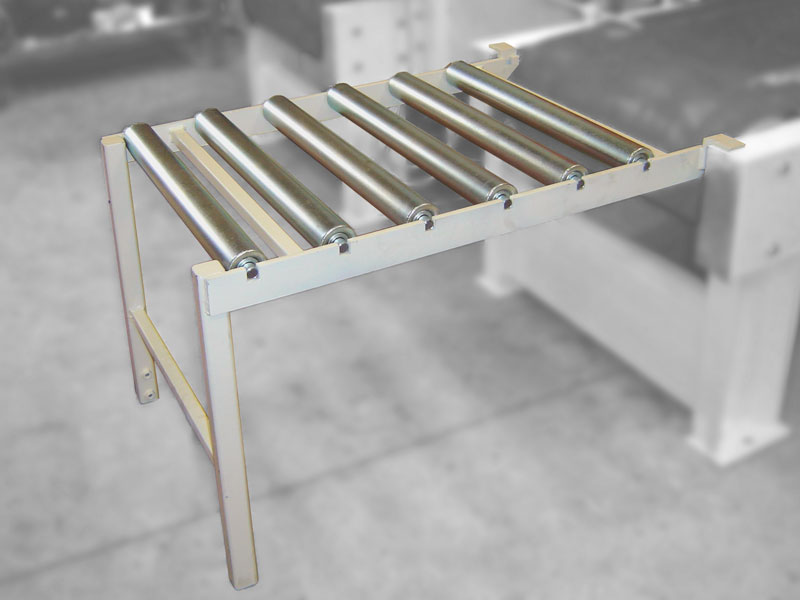

  • idle roller for entry/exit of material lenght 1 m
  • electroplated diamond roller for satin finish lenght 1 m
  • roller for bamboo effect
  • replacement roller complete of supports and pulleys (with widia points pitch 3 mm)
  • replacement widia point (n. 248 points for roller pitch 3 mm)
