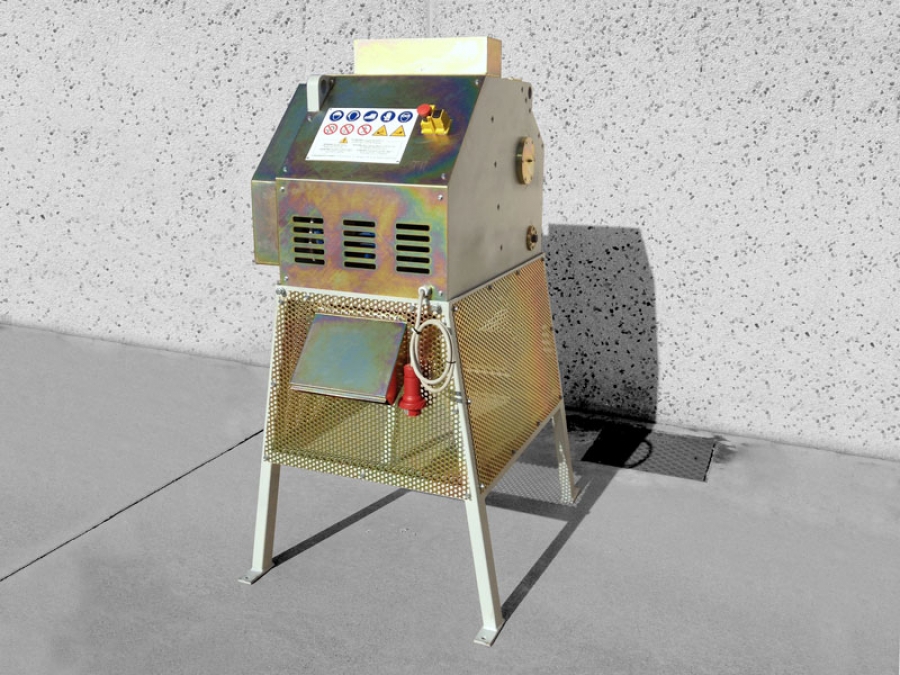

JAW CRUSHER Modello CF45: mechanical heavy structural steel machine, electro-welded with eccentric system, with 6 settings for different thickness of grinding grit. Grinds stone materials, even large dimensions, through a system of jaws with tempered blades, each individually interchangeable. The machine is positioned on a sturdy base, with output conveyor plate, where it is possible to sieve the ground grit into 2 grit sizes, which are separated and collected in 20 kg bags
Images related to this product
TECHNICAL DATA
- dimensions 1200x1000x(h)1700 mm
- weight 1050 Kg
- motor power 5 kW at 380 V - 50 Hz
- crushing through 2 jaws with interchangeable tempered teeth
