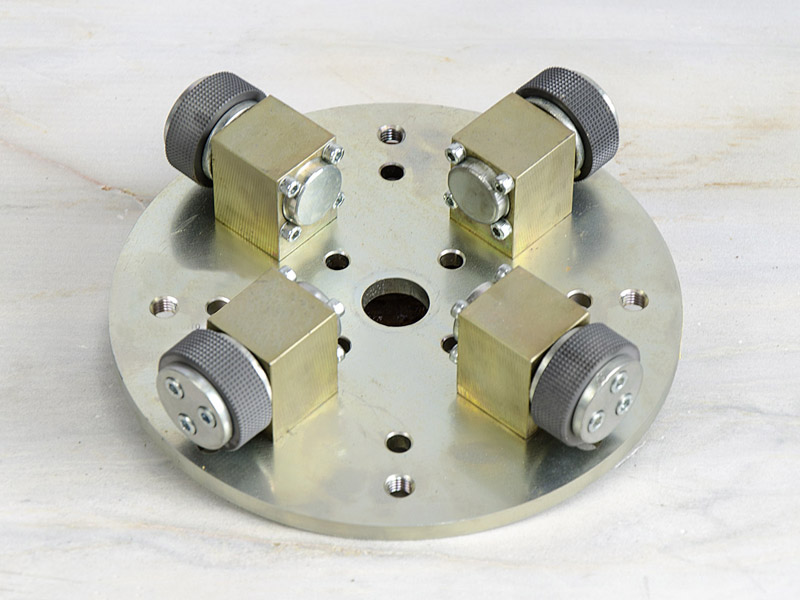

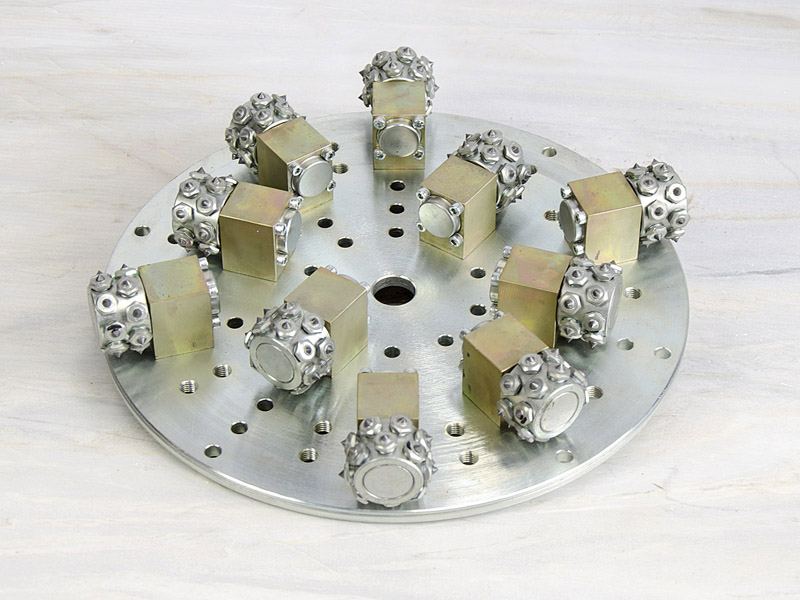

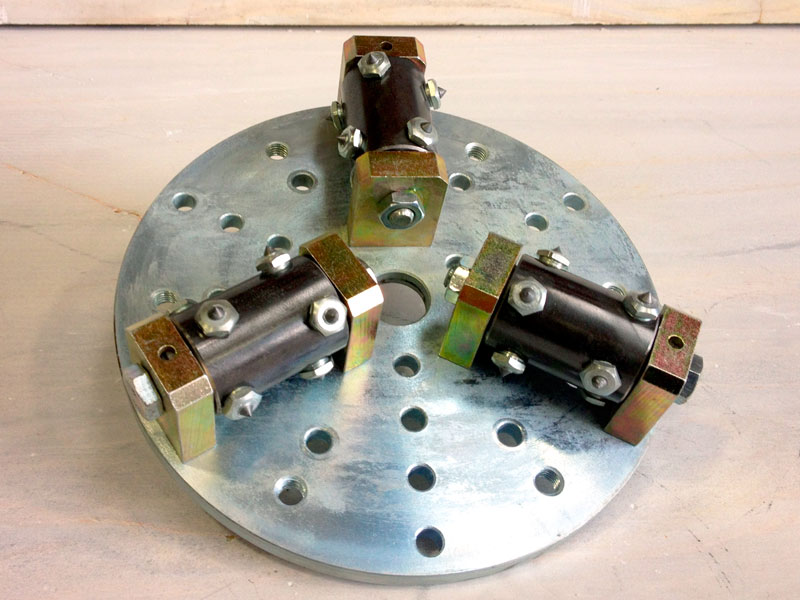

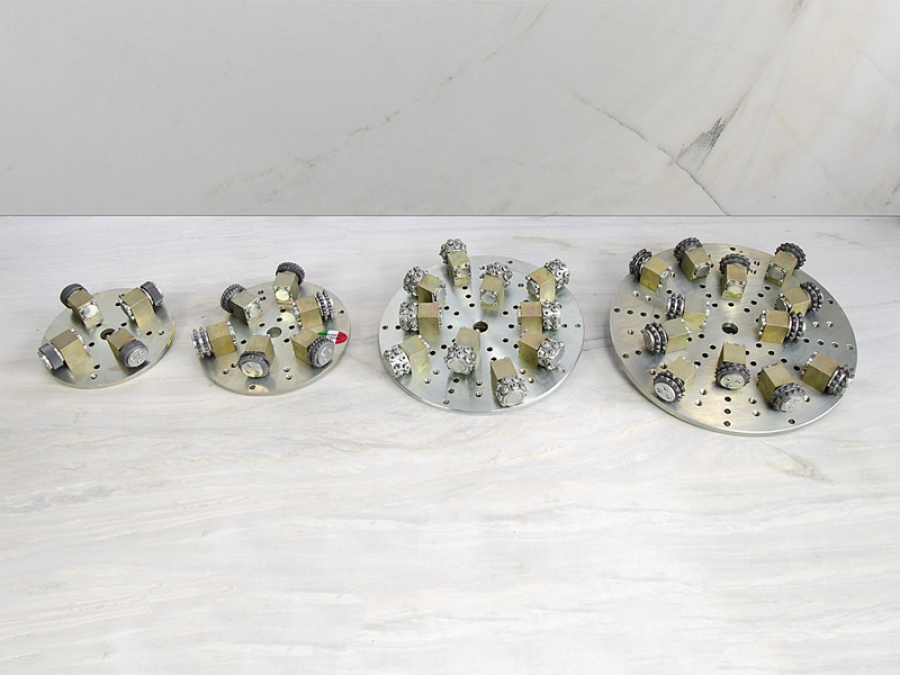

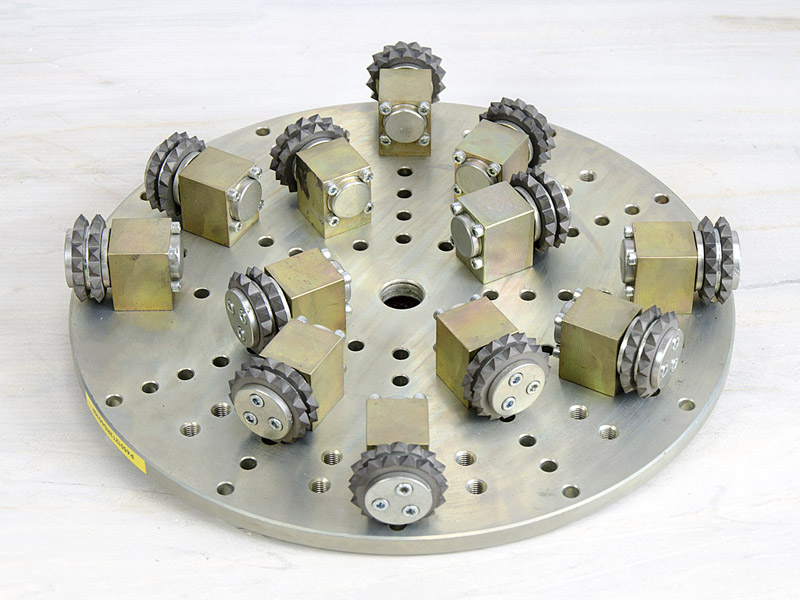

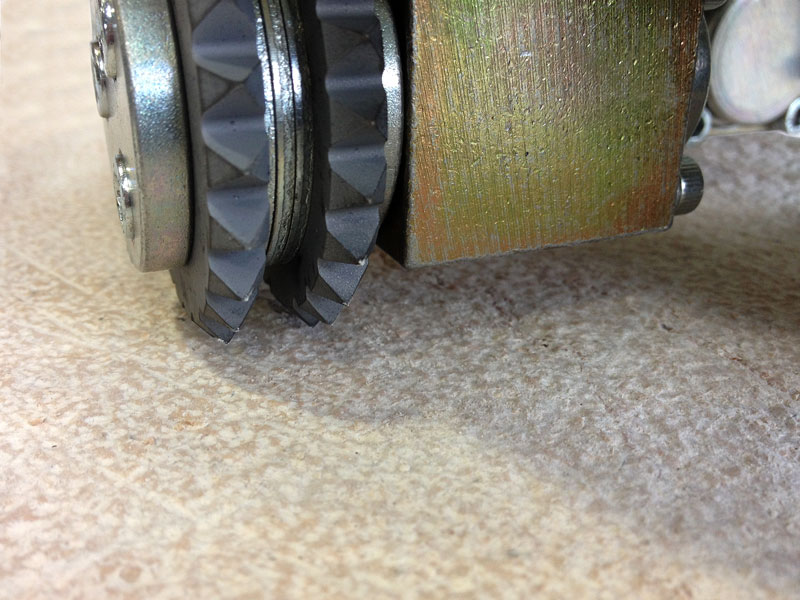

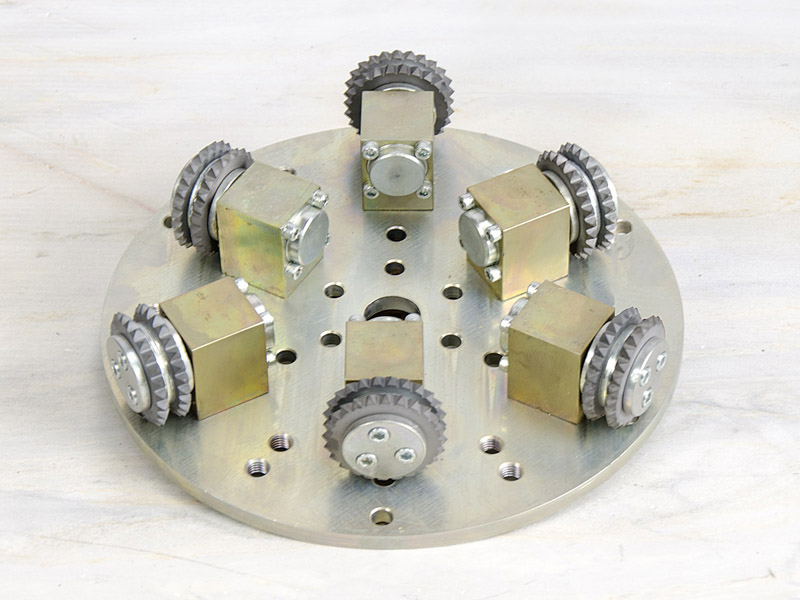

Rotary bush hammer plates for automatic machines. The rotary bush hammer heads are usually applied in even numbers, from 4 heads on plates with diameter of 250 mm to 12 heads on plates with diameter of 500 mm. Special plates made to measure according to customer specifications can be supplied on request with bush hammering grain of choice from the different models available. The tools are made of the highest quality pure widia and can be reground, thereby lengthening their lifespan.
Images related to this product
ACCESSORIES
Frankfurt plate | Counterplate, diam. 300mm | |
Frankfurt plate with 4 heads, diam. 340mm |
<
AVAILABLE MODELS
(to be chosen on the basis of the desired bush hammering grain)
Head for electroplated sandblasting | Head for micro-bush hammering | Head 2 wheels d 60 with 40 points |
Head 2 wheels d 60 with 24 points | Head 2 wheels d 60 with 15 points | Head with 16 points d60 |
Head with 20 points d60 | Head with 12 points d60 | Head with 15 pressed points |
Head with 30 pressed points | Head 2 wheels d80 with 20 points pick for granite | Head with 12 points d80 pick for marble |
Head with 8 points d80 | Head with 9 points d60 | Picograf (pick scratcher) |
